Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Socket AM4

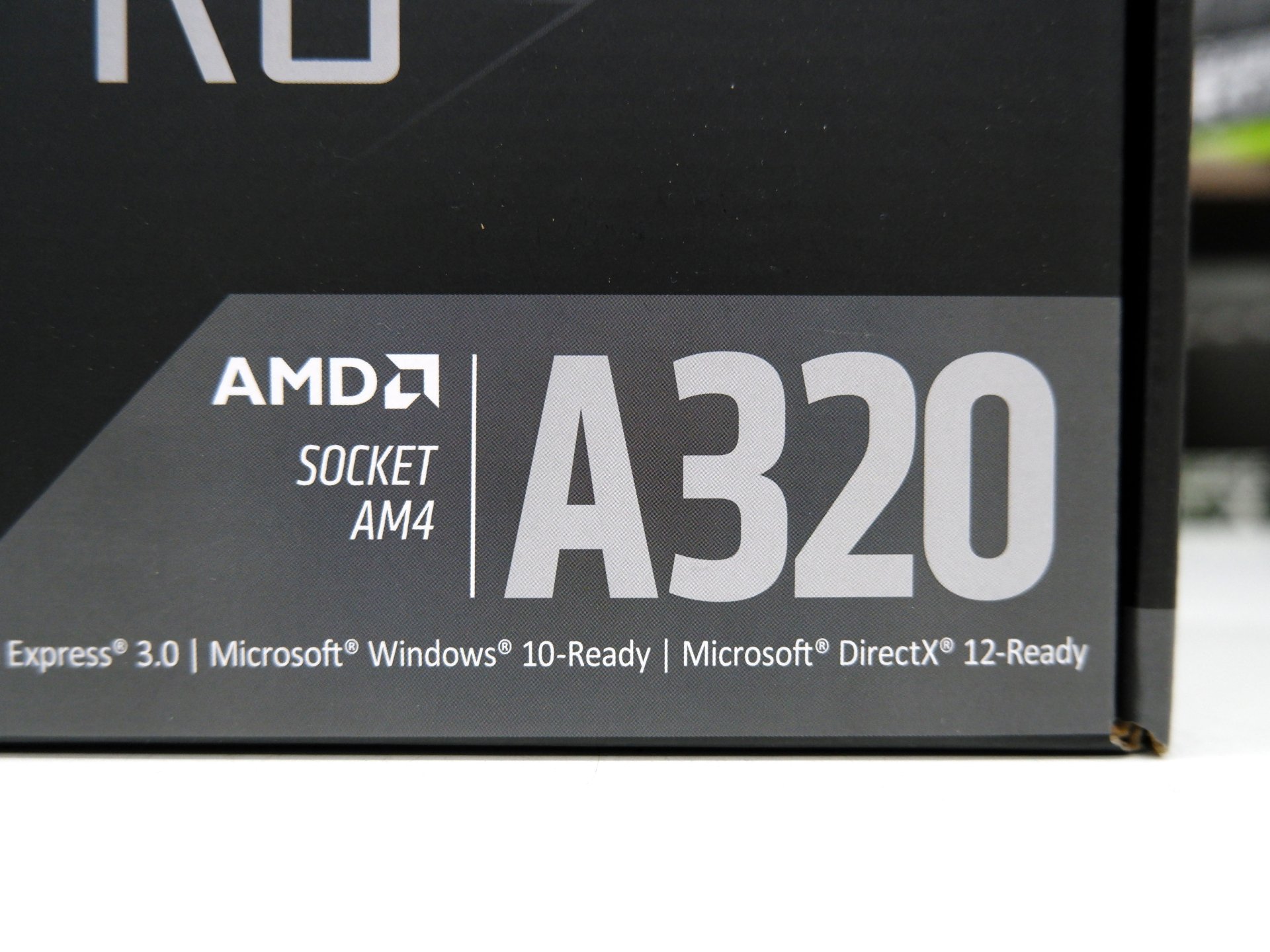

Chipset AMD A320
Memory Support 2 x DDR4 memory slots, support up to 32GB
Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Graphics
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
Audio
Realtek® ALC892 Codec
7.1-Channel High Definition Audio
Expansion Slots
1 x PCIe 3.0 x16 slot
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processorss
Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 2.0 x1 slots
Storage
AMD® A320 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID 1 and RAID 10
USB
AMD® A320 Chipset
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal connectors)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
Back Panel Connectors
1 x Mouse
1 x DVI-D Port
4 x USB 3.2 Gen1
1 x LAN Port
1 x Keyboard
1 x HDMI Port
7 x USB 2.0 Ports
3 x HD Audio Connectors
LAN 1 x Realtek® 8111H Gigabit LAN controller
Form Factor
8.9 in. x 7.4 in. (22.6 cm x 18.7 cm)
m-ATX Form Factor
Operating System Support
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Package Dimension (W x D x H) : 26.00 x 25.70 x 5.50 cm
